A new range of surface drainage products engineered solely for the unique design and performance demands of highways, urban roads and bridges.
ACO ROAD consists of four different yet complementary product offerings. Each product within the range addresses a variety of unique design criteria required in different types of road and/or bridge projects.
Products address several key issues:
- Creating a safer driving environment by minimizing roadside ponding and sheeting
- Dealing with the traffic of fast moving vehicles
- Avoiding the need for multiple grades

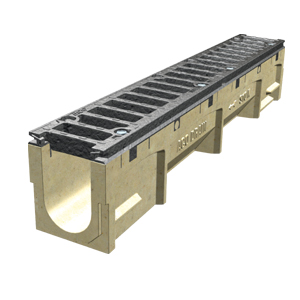

A 4" internal width trench drain with grates that offer large liquid intake slots (60% open area), and a smooth internal polymer concrete cavity. These features work to quickly collect and evacuate storm water to eliminate flooding – thus reducing accidents. TraffikDrain can safely withstand loadings of heavy vehicles due to its integrally cast-in rail and bolted ductile iron grates. The system is independently certified to DIN 19580 Load Class E.

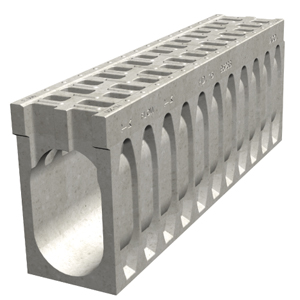

An 8" internal width trench drain monolithically cast from polymer concrete. The one-piece unit offers large liquid intake slots cast into the top surface, and a smooth oval-shape polymer concrete cavity. Highway Drain can safely withstand loadings of fast moving vehicles as there are no parts that can vibrate loose. The system is independently certified to DIN 19580 Load Class E.

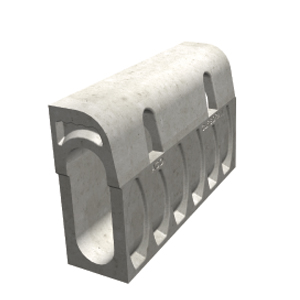

A pre-cast curb with an integral drainage feature with 2 inlets per unit, to eliminate ponding along the curb line. The system comprises standard units, radius units, drop curbs, center curbs, 90° corner, tactile pavers, catch basin and access unit to ensure the system is easy to design and install for most road layouts. The curb profile and color matches standard Type 6 cement concrete curbs to ensure an aesthetic solution.
Offers an excellent drainage solution for bridge applications.
The system comprises of a choice of scuppers, to collect storm
water from the bridge deck surface, and a simple bell & spigot
pipe system to transfer this storm water to catch basins at the appropriate positions beneath the bridge. Products are all
manufactured from fiberglass to ensure maximum strength with
minimum weight, which results in an easier and more economic
installation as less fixing brackets are required.
|
