The National Wheel-O-Vator Co., Inc.
509 West Front Street
Roanoke, IL 61561-0348
Toll-Free: 800-968-5438 • 888-353-8898
E-mail: sales@wheelovator.com
Web site: http://www.wheelovator.com

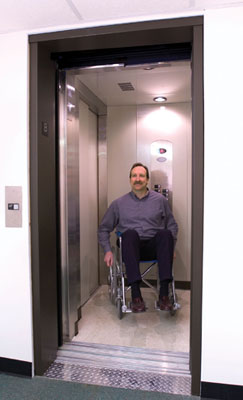

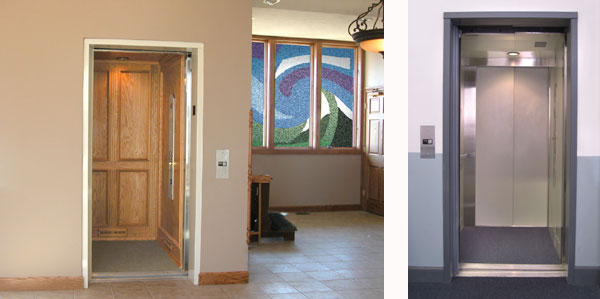

Some of the greatest challenges that face architects and specification writers today include meeting the necessary code requirements, budgetary constraints and space limitations that can be present in new and alteration construction. National Wheel-O-Vator's Evolution allows the architect or the specifier to take the guesswork out of integrating an ASME A17.1 and ICC/ANSI A117.1 LU/LA elevator into their application.
- 1:2 Roped hydraulic drive system
- Single opening or opposite opening doors
- Size 42" x 54" cabs
- 36" doors
- Automatic, power sliding, two-speed hoistway and car doors
- 1400 lb capacity
- Travel up to 25'
- Rated speed of 30 fpm
- Automatic interior lighting
- Safety descent – bottom terminal floor
- Emergency lighting
- Car and hall call acknowledgement light
- Speed governor
- Grab rail
- Audible and visual signal
- Tactile/Braille
- Full height photo electric screen
- Pit depth
38" (with buffer)
14" (with buffers and alternative means)
- Overhead requirement
11' (refuge space)
9'6" (alternative means)
|
