QUARRYBASICS® X Colors –  metallic additive for Added Slip Resistance.

Description and uses.

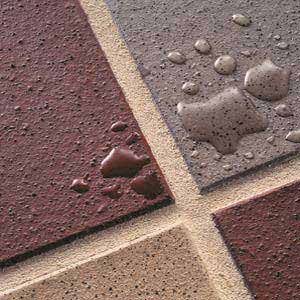

Metropolitan Ceramics' quarry tile with a metallic additive dispersed throughout the body of the tile for enhanced slip resistance. All of the features and benefits of the clear tone colors, designed for heavy traffic areas subject to frequent spills and moisture. The QUARRYBASICS® X Colors have a coefficient of friction of 0.9 dry and 0.7 wet, at time of manufacture, meet ADA guidelines as manufactured, and when properly maintained offer enhanced slip resistance for the life of the installation. QUARRYBASICS X Colors also have a distinctive "speckled" look that is appealing and helps hide dirt and marks. Because of the nature of the additive, X-Colors will perform best when maintained using the proper equipment. A copy of our maintenance guide is available from our web site, www.metroceramics.com. While the metallic additive makes the X-Colors the optimum choice for high traffic commercial applications with slip/fall concerns, the texture of the surface may preclude using QUARRYBASICS® X Colors in some commercial and residential applications.

Sizes.
QUARRYBASICS® X Colors are available in 6 × 6, nominal 4 × 8 (3 5/8" × 7 5/8") and
8 × 8 (7 5/8" × 7 5/8") sizes. The tiles are 1/2" thick. Matching bullnose trim is available in X colors, and coordinating trim is available in QUARRYBASICS® clear tone colors.

Colors.
31X Commercial Red
57X Stone Gray
15X Malibu Beach

METRO TREAD®  -  treaded tile for Added Slip Resistance.

Description and uses.
METRO TREAD® System treaded tile is the second option offered from Metropolitan Ceramics for heavy traffic areas subject to frequent spills and moisture. METRO TREAD® is produced with nine raised treads across the surface of each tile. The "ribs" are spaced 5/8" apart for added slip resistance that will not wear off. The treaded surface is part of the tile body. METRO TREAD® has the same features and benefits of Metropolitan's other fine quarry products, with the added benefit of increased slip resistance due to the raised tread surface. Because of the treaded surface, METRO TREAD® has a coefficient of friction of 0.9 dry and 0.7 wet at time of manufacture. METRO TREAD® meets ADA guidelines as manufactured.

METRO TREAD® is a floor system and should be used in one of two of the following patterns, depending on the application:

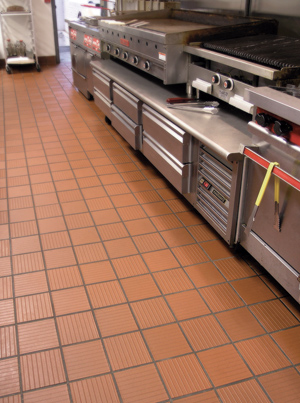

"Checkerboard system" features the direction of the ribs alternating from tile to tile. This pattern is suitable for open areas such as commercial kitchens and industrial applications.

"Linear system" with the ribs installed running in the same direction across the width of the installation, is used in areas where traffic flow is perpendicular to the direction of the ribbed-tread. Suitable for walkways, entryways and access ramps as well as on stair steps.

Sizes.
METRO TREAD® is available in 6" x 6" x 1/2" size.

Colors.
METRO TREAD® is available in three colors, MT31T Mayflower Red, MT57T Puritan Gray and MT15T Buckskin.
