TIGER Drylac® Series 58 – Exterior or Interior

A highly weather- and UV-resistant powder coating for aluminum based on TGIC-Free Super-Durable Polyester

Features

Conforms with AAMA 2604-05 Standards Conforms with GSB and Qualicoat Class 2 Standards

  • Superior Gloss and Color Retention
  • Excellent Weather Resistance
  • 5 year South Florida Exposure
  • Very Smooth Flow
  • Excellent Edge Coverage
  • Good Yellowing Stability
  • Good Storage Stability
Typical Applications

All Architectural and Construction Applications including

  • Metal Facades
  • Lighting Fixtures
  • Site Furnishings
  • Marine Applications
  • Stadium Seating and Railing
  • Agricultural Equipment
  • Store Fronts
  • Fencing
  • Playground Equipment
Standard Series 58
  • Smooth Glossy
  • Smooth Semigloss
  • Smooth Matte
  • Solid Colors and Metallics
Custom Colors

Other colors and finishes are available as custom Colors colors with a 220 lb. minimum order quantity. Due to the limited availability of Super Durable pigments with performance characteristics appropriate to the long term durability of the coating, not all colors can be formulated, especially colors in the yellow, orange, red and purple range.

Standard Packaging

44 lbs / 20 kg carton or 5 lbs / 2.5 kg Minipack

Specific Gravity

Approximately 1.2 - 1.8 (g/cm2) depending on pigmentation (ASTM D792)

Theoretical Coverage

at 60 µm / 2.4 mils film thickness: 9.8 m2/kg / 30.2 sq ft

Processing

Corona or Tribo* manual or automatic.
*Suitability of metallic effects for Tribo processing must be verified prior to application. Please consult our latest edition of relevant information sheets.

Dry Storage Stability

6 months at no more than 77° F / 25° C

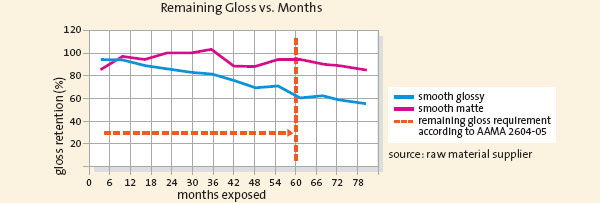

Weather Resistance

Florida exposure at a 45° angle — facing south – RAL 8014*

*The remaining gloss values that can be expected vary depending on the original gloss level and color. A reasonable degree of loss of gloss and color variation due to long-term UV exposure can be expected.

Note : Post-bending properties of any part must be verified prior to application, as minor cracks in the coated surface may lead to corrosion. Joint sealants and any other auxiliary products, such as glazing aids, gliding waxes, drilling and cutting lubricants, which come in contact with the coated surface must be ph-neutral and free of substances which may damage the finish. Prior to coating, a suitability test at the applicator is therefore highly recommended.

Performance Data on Aluminum

Checked under laboratory conditions on a yellow chromated aluminum test panel, which is 0.7(mm) thick. Actual product performance may vary due to product specific properties such as gloss, color, effect and finish as well as application related and environmental influences.

Cleaning

Please see information sheets (latest edition).

Test Result Test Method TIGER Drylac® Series 58 Smooth Glossy
Film thickness ISO 2360 60-80 µm / 2.5 – 3.5 mils
Gloss – 60° AAMA 2604-05 / Section 7.2 pass
Cross hatch adhesion test AAMA 2604-05 / Section 7.4.1 pass
Mandrel bending test ASTM D522 3 mm (1/8 in)
Impact test ASTM D2794 Up to 80 in/lb.
Cracking at the perimeter of the concave area, but no cracking pick off
Impact test AAMA 2604-05 / Section 7.5 pass
Pencil hardness AAMA 2604-05 / Section 7.3 2H (minimum)
Humidity resistance 3,000 h ASTM D2247 max. blistering 1 mm
Salt spray resistance 3,000 h ASTM B117 max. undercutting 1 mm


Florida Exposure 5 years Certificate #: TIGA-2-A-14 • Atlas Material Testing Technology Inc.
Color change AAMA 2604-05 / Section 7.9.1.2 pass
Gloss retention AAMA 2604-05 / Section 7.9.1.4 pass
