The R.C.A. Rubber Company
An Ohio Corporation of Akron, Ohio
1833 E. Market Street
P.O. Box 9240
Akron, OH 44305-0240
Tel: (330) 784-1291
Toll-Free: (800) 321-2340
Fax: (330) 794-6446
E-mail: commercialsales@rcarubber.com
Web site: http://www.rcarubber.com

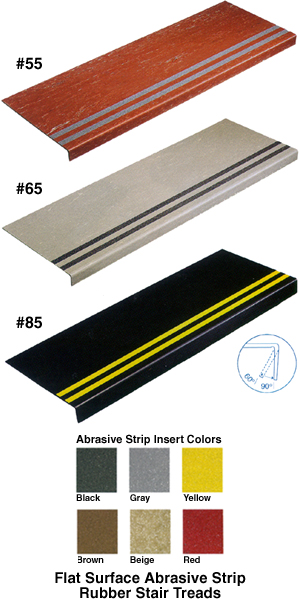

Flat Surface Abrasive Strip Rubber Stair Treads

  • For interior use only.
  • For all interior stairs especially near outside entrances where tracked-in snow and water can cause hazardous footing.
  • Detail dimensions subject to manufacturing tolerances.
  • All treads furnished with sanded backs.
  • Butting stair treads is not recommended.
  • Made in USA
  • Rubber stair treads shown here meet the requirements of ADA.
Abrasive Strips
Two 3/4" (19.05mm) wide abrasive strips recessed into the tread supply extra anti-slip protection. Recommended for stairs near outside entrances, where tracked-in rain and snow can cause hazardous footing. Standard black, plus optional high visibility brown, red, beige, gray or yellow abrasive strips highlight the step edge and provide extra slip resistance on any interior stair.











Black Abrasive Strips will be supplied unless otherwise specified

PRODUCT USES THICKNESS DEPTH LENGTHS (1) WEIGHT COLORS
55 Medium
Abrasive Strip
Treads		 MD 3/16” to 1/8”
4.76 to 3.18mm		 12-1/2”
318mm 		 36”, 42”, 48” 54” 60”, 72”
910, 1070, 1220, 1370, 1520, 1830mm		 1.5 lbs./ft.
2.24 kg/m		 Series I & II
(2)
65 Heavy Duty Abrasive Strip
Treads		 HD 5/16” to 3/16”
7.94 to 4.76mm		 12-1/2”
318mm 		 36”, 42”, 48” 54” 60”, 72”
910, 1070, 1220, 1370, 1520, 1830mm		 3 lbs./ft.
4.47 kg/m		 Series I (3)
85 Long Nose
Heavy Duty Abrasive Strip
Treads		 HD 5/16” to 3/16”
7.94 to 4.76mm		 12-1/2”
318mm 		 36”, 42”, 48” 54” 60”, 72”
910, 1070, 1220, 1370, 1520, 1830mm		 3 lbs./ft.
4.47 kg/m		 Series I (3) (4)

Notes
(1) Special lengths available when minimum requirements are met.
(2) Square or Round Nose
(3) Square Nose Only
(4) Adjust-A-Nose

Uses: HD = Heavy Duty; MD = Medium Duty; LD = Light Duty

ADDITIONAL INFORMATION

Product Drawings: see the CAD LIBRARY portion of this Profile for dimensioned drawings.

  • See the “Technical Data” Profile for:
  • Guide Specifications
  • Adhesive Recommendations
  • Maintenance Recommendations
  • Product Performance Data
  • Warranty

Color Range:
Medium Duty Treads shown(#55) are available in Series I, II, II and Primary Colors.

Heavy Duty Treads shown (#65 & #85) are availabe in Series I and Primary Colors.

For samples or assistance, call 1-800-321-2340 or send an E-mail to: commercialsales@rcarubber.com.
