Levolor Corp.
3 Glenlake Parkway
Atlanta, GA 30328
Tel: (800) 826-8021
Fax: (800) 624-0029
Email: contract.sales@levolor.com
Web site: http://www.levolorcontract.com
- Self-Lubricating Wheeled System Glides Very Smoothly
- Louvers Traverse Smoothly & Stack in 30% Less Space
- Louvers Rotate 360°
- Easy to Clean Windows – Louvers Move Away From Control End Effortlessly
- Stainless Steel Links will Not Rust
For more detailed specifications, please reference the Zirlon Product Guide
specifications.

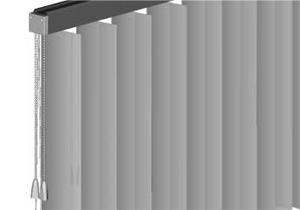

- LouverDrape Zirlon Vertical Blind Manufactured by Levolor (Model ZIR)
- One-Year Warranty
- Materials:
- Head channel made of anodized extruded aluminum alloy
- 1-5/16" wide x 1-7/16" high with capped ends.
- Provided with Delrin®, or equal, sprocket wheels
- End caps are equipped with covers to enclose sprockets, rotation rod
ends and rollers for traverse cord
- Made of Delrin
- 5/16" wide
- Traverses on Zirlon wheels
- No glides or sliders are allowed
- Flexible 1/4" wide stainless steel spacer links space and stabilize trucks
by passing smoothly between stabilizer guides on each truck
- Rotate 360°
- Stack,when traversed, into no more than 5/16" per louver
- When rotated, 3-1/2" louvers overlap not less than 3/8"
- #6 nickel-plated bead chain synchronizes and actuates 360° rotation
by turning a keyed aluminum rod actuating Delrin worm and spur gear in each
truck
- Gears provide no less than 8-to-1 mechanical advantage and keep louvers
fixed until reset by control
- No cord or 1-to-1 ratio mechanisms are allowed.
- Spur and worm gear slips under extreme loading and is able to be realigned
with no damage
- Left to right, right to left or split, by means of a non-stretch cord
Channel Color:
- Anodized aluminum is standard channel color
Louver Spacing:
- Normal louver spacing on center is 3/8 of an inch less than the louver
size
Louver width: 3-1/2" Spacing on center: 3-1/8"
Channel Installation:
- Bracket or surface installation using:
- Thumb Clamps
- Angle Brackets
- Direct Mount Screws
|
