Overview

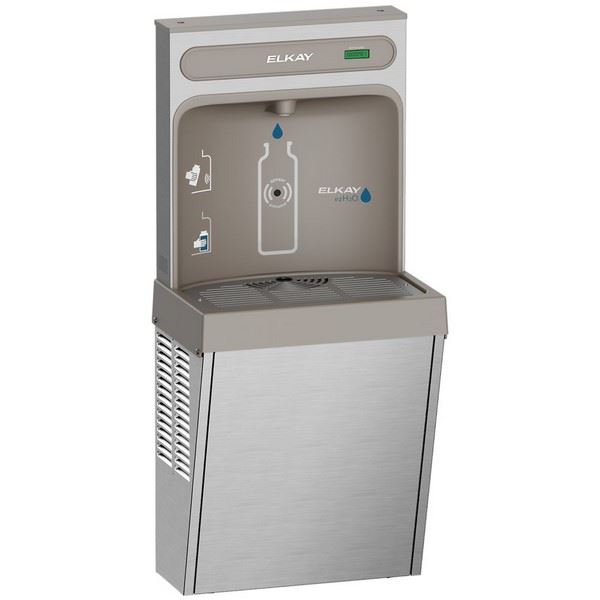

ezH2O Refrigerated Surface Mount Bottle Filling Station Filtered 8GPH Stainless Steel - LZ8WSSSMC

The Elkay ezH2O® refrigerated surface mount bottle filling station delivers a clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Ideal for installations with limited space. Sanitary no-touch sensor activation features an automatic 20-second shut-off timer.

Features

  • Reduced 12" wall projection.
  • Stainless steel grate for convenient hands-free filling; grate is removable for easy cleaning of the basin.
  • Front panel filter access improves ease of filter replacement.
  • Rough-in replacement compatible with EZ and EMAB Elkay models.
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
  • Touchless, sensor activation (bottle filler) designed for easy use.
  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
  • Real drain system eliminates standing water.
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.


See More


Specifications

Specifications
Number of Stations1
FeaturesAntimicrobial
Filtered
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor
Power115V/60Hz
DimensionsL: 17-7/8"
W: 11-7/8"
H: 41-1/4"
Bubbler StyleNo Bubbler
Mounting OptionWall Mount (On Wall)
Chilling Capacity8.0 GPH
Installation LocationIndoor
Shipping DimensionsL: 24"
W: 28-11/16"
H: 26-3/16"
Shipping Weight64 LBS
Made or Assembled USAbuilt
FamilyEZ Family
ADAYes
FilteredYes
Code Compliance Drinking SolutionsUL 399
NSF 372 (lead free)
NSF 61
ADA & ICC A117.1
CAN/CSA C22.2 No. 120
Buy American Act
ASME A112.19.3/CSA B45.4
NSF 42
NSF 53
